#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandAddOutputPortFromCatalog:

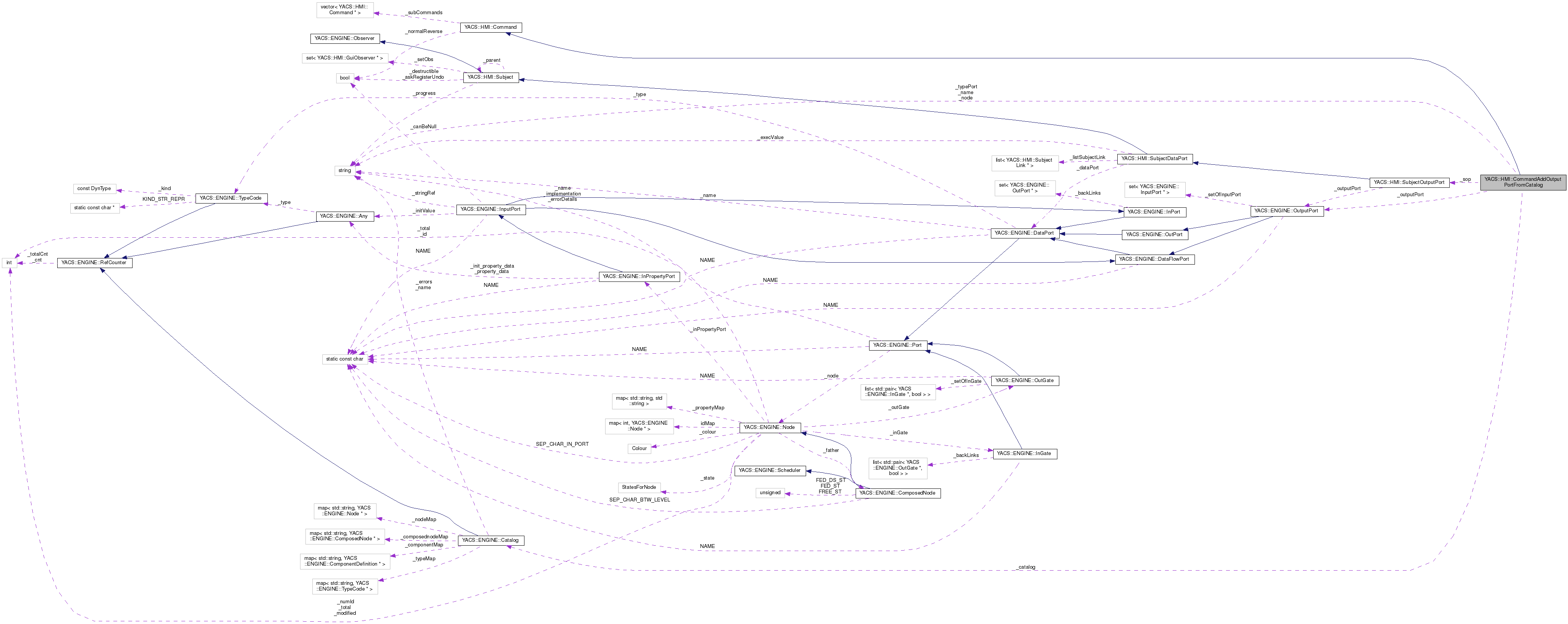

Collaboration diagram for YACS::HMI::CommandAddOutputPortFromCatalog:

Public Member Functions
	CommandAddOutputPortFromCatalog (YACS::ENGINE::Catalog *catalog, std::string type, std::string node, std::string name)

YACS::ENGINE::OutputPort *	getOutputPort ()

SubjectOutputPort *	getSubjectOutputPort ()

Public Member Functions inherited from YACS::HMI::Command
	Command ()

virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...

virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...

virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...

std::string	recursiveDump (int level=0)

void	addSubCommand (Command *command)

bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()

virtual bool	localReverse ()

virtual std::string	dump ()

Protected Attributes
YACS::ENGINE::Catalog *	_catalog

std::string	_typePort

std::string	_node

std::string	_name

YACS::ENGINE::OutputPort *	_outputPort

SubjectOutputPort *	_sop

Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands

bool	_normalReverse

Detailed Description

Definition at line 282 of file commandsProc.hxx.

Constructor & Destructor Documentation

CommandAddOutputPortFromCatalog::CommandAddOutputPortFromCatalog	(	YACS::ENGINE::Catalog *	catalog,
		std::string	type,
		std::string	node,
		std::string	name
	)

Definition at line 1298 of file commandsProc.cxx.

References _outputPort, and _sop.

   : Command(), _catalog(catalog), _typePort(type), _node(node), _name(name)
 {
   _outputPort = 0;
   _sop = 0;
 }

Member Function Documentation

std::string CommandAddOutputPortFromCatalog::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 1308 of file commandsProc.cxx.

References _name, _node, _typePort, and PMMLBasicsTestLauncher::ret.

 {
   string ret ="CommandAddOutputPortFromCatalog " + _typePort + " " + _node + " " + _name;
   return ret;
 }

YACS::ENGINE::OutputPort * CommandAddOutputPortFromCatalog::getOutputPort ( )

Definition at line 1314 of file commandsProc.cxx.

References _outputPort.

 {
   return _outputPort;
 }

SubjectOutputPort * CommandAddOutputPortFromCatalog::getSubjectOutputPort ( )

Definition at line 1319 of file commandsProc.cxx.

References _sop.

Referenced by YACS::HMI::SubjectElementaryNode::addOutputPort().

 {
   return _sop;
 }

bool CommandAddOutputPortFromCatalog::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 1324 of file commandsProc.cxx.

References _catalog, YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectNode, _name, _node, _outputPort, _sop, YACS::ENGINE::Catalog::_typeMap, _typePort, DEBTRACE, YACS::ENGINE::ElementaryNode::edAddOutputPort(), YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::HMI::SYNCHRO, YACS::ENGINE::Proc::typeMap, YACS::HMI::Subject::update(), YACS::Exception::what(), and YASSERT.

 {
   DEBTRACE("CommandAddOutputPortFromCatalog::localExecute");
   OutputPort *son = 0;
   try
     {
       Proc* proc = GuiContext::getCurrent()->getProc();
       Node* node = proc->getChildByName(_node);
       ElementaryNode* father =dynamic_cast<ElementaryNode*> (node);
       if (father)
         {
           //try proc types and then catalog if not in proc
           if(proc->typeMap.count(_typePort))
             son = father->edAddOutputPort(_name, proc->typeMap[_typePort]);
           else if (_catalog->_typeMap.count(_typePort))
             son = father->edAddOutputPort(_name, _catalog->_typeMap[_typePort]);
           else
             {
               DEBTRACE(_typePort << " not found in catalog");
               GuiContext::getCurrent()->_lastErrorMessage = _typePort + " not found in catalog";
             }
         }
       _outputPort = son;
       YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(node));
       SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
       _sop = snode->addSubjectOutputPort(son, _name);
       snode->update(SYNCHRO,0,0); // when input port tab in node edition is visible
     }
   catch (Exception& ex)
     {
       DEBTRACE("CommandAddOutputPortFromCatalog::localExecute() : " << ex.what());
       setErrorMsg(ex);
       if (son) delete son;
       _outputPort = 0;
     }
   return (_outputPort != 0);
 }

bool CommandAddOutputPortFromCatalog::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 1362 of file commandsProc.cxx.

References YACS::HMI::GuiContext::_mapOfSubjectDataPort, _name, _node, _outputPort, _sop, DEBTRACE, YACS::HMI::Subject::erase(), YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::ElementaryNode::getOutputPort(), YACS::HMI::Subject::getParent(), YACS::HMI::GuiContext::getProc(), YACS::HMI::REMOVE, YACS::HMI::Subject::select(), setErrorMsg(), YACS::HMI::Subject::update(), YACS::Exception::what(), and YASSERT.

 {
   DEBTRACE("CommandAddOutputPortFromCatalog::localReverse");
   try
     {
       Proc* proc = GuiContext::getCurrent()->getProc();
       Node *node = proc->getChildByName(_node);
       ElementaryNode* enode = dynamic_cast<ElementaryNode*>(node);
       YASSERT(enode);
       _outputPort = enode->getOutputPort(_name);
       YASSERT(_outputPort);
       YASSERT(GuiContext::getCurrent()->_mapOfSubjectDataPort.count(_outputPort));
       _sop = dynamic_cast<SubjectOutputPort*>(GuiContext::getCurrent()->_mapOfSubjectDataPort[_outputPort]);
       YASSERT(_sop);

       Subject *father=_sop->getParent();
       Subject::erase(_sop);
       _sop = 0;
       _outputPort = 0;
       if (father)
         {
           DEBTRACE("REMOVE");
           father->select(true);
           father->update(REMOVE,0,0);
         }
       return true;
     }
   catch (Exception& ex)
     {
       DEBTRACE("CommandAddOutputPortFromCatalog::localReverse(): " << ex.what());
       setErrorMsg(ex);
       return false;
     }
 }

Member Data Documentation

YACS::ENGINE::Catalog* YACS::HMI::CommandAddOutputPortFromCatalog::_catalog

protected

Definition at line 295 of file commandsProc.hxx.

Referenced by localExecute().

std::string YACS::HMI::CommandAddOutputPortFromCatalog::_name

protected

Definition at line 298 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

std::string YACS::HMI::CommandAddOutputPortFromCatalog::_node

protected

Definition at line 297 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

YACS::ENGINE::OutputPort* YACS::HMI::CommandAddOutputPortFromCatalog::_outputPort

protected

Definition at line 299 of file commandsProc.hxx.

Referenced by CommandAddOutputPortFromCatalog(), getOutputPort(), localExecute(), and localReverse().

SubjectOutputPort* YACS::HMI::CommandAddOutputPortFromCatalog::_sop

protected

Definition at line 300 of file commandsProc.hxx.

Referenced by CommandAddOutputPortFromCatalog(), getSubjectOutputPort(), localExecute(), and localReverse().

std::string YACS::HMI::CommandAddOutputPortFromCatalog::_typePort

protected

Definition at line 296 of file commandsProc.hxx.

Referenced by dump(), and localExecute().

The documentation for this class was generated from the following files:

src/hmi/commandsProc.hxx
src/hmi/commandsProc.cxx
