YACS::HMI::CommandAddODSPortFromCatalog Class Reference

#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandAddODSPortFromCatalog:

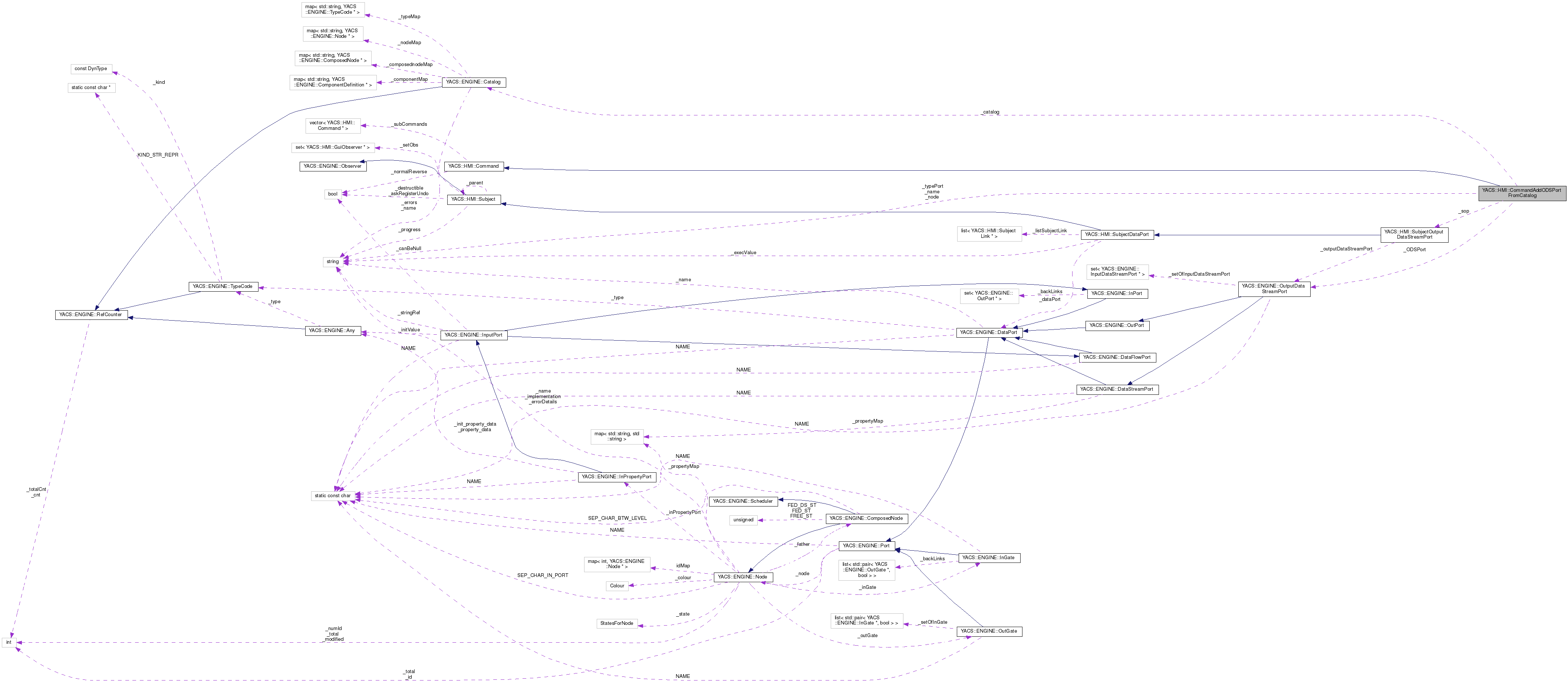

Collaboration diagram for YACS::HMI::CommandAddODSPortFromCatalog:

Public Member Functions
	CommandAddODSPortFromCatalog (YACS::ENGINE::Catalog *catalog, std::string type, std::string node, std::string name)
YACS::ENGINE::OutputDataStreamPort *	getODSPort ()
SubjectOutputDataStreamPort *	getSubjectODSPort ()
Public Member Functions inherited from YACS::HMI::Command
	Command ()
virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...
virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...
virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...
std::string	recursiveDump (int level=0)
void	addSubCommand (Command *command)
bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()
virtual bool	localReverse ()
virtual std::string	dump ()

Protected Attributes
YACS::ENGINE::Catalog *	_catalog
std::string	_typePort
std::string	_node
std::string	_name
YACS::ENGINE::OutputDataStreamPort *	_ODSPort
SubjectOutputDataStreamPort *	_sop
Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands
bool	_normalReverse

Detailed Description

Definition at line 324 of file commandsProc.hxx.

Constructor & Destructor Documentation

CommandAddODSPortFromCatalog::CommandAddODSPortFromCatalog	(	YACS::ENGINE::Catalog *	catalog,
		std::string	type,
		std::string	node,
		std::string	name
	)

Definition at line 1497 of file commandsProc.cxx.

References _ODSPort, _sop, and DEBTRACE.

  : Command(), _catalog(catalog), _typePort(type), _node(node), _name(name)
{
  DEBTRACE("CommandAddODSPortFromCatalog");
  _ODSPort = 0;
  _sop = 0;
}

Member Function Documentation

std::string CommandAddODSPortFromCatalog::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 1508 of file commandsProc.cxx.

References _name, _node, _typePort, and PMMLBasicsTestLauncher::ret.

{
  string ret ="CommandAddODSPortFromCatalog " + _typePort + " " + _node + " " + _name;
  return ret;
}

YACS::ENGINE::OutputDataStreamPort * CommandAddODSPortFromCatalog::getODSPort

(

)

Definition at line 1514 of file commandsProc.cxx.

References _ODSPort.

{
  return _ODSPort;
}

SubjectOutputDataStreamPort * CommandAddODSPortFromCatalog::getSubjectODSPort

(

)

Definition at line 1519 of file commandsProc.cxx.

References _sop.

Referenced by YACS::HMI::SubjectElementaryNode::addODSPort().

{
  return _sop;
}

bool CommandAddODSPortFromCatalog::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 1524 of file commandsProc.cxx.

References _catalog, YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectNode, _name, _node, _ODSPort, _sop, YACS::ENGINE::Catalog::_typeMap, _typePort, DEBTRACE, YACS::ENGINE::ElementaryNode::edAddOutputDataStreamPort(), YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::Exception::what(), and YASSERT.

{
  DEBTRACE("CommandAddODSPortFromCatalog::localExecute");
  OutputDataStreamPort *son = 0;
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node* node = proc->getChildByName(_node);
      ElementaryNode* father =dynamic_cast<ElementaryNode*> (node);
      if (father)
        {
          if (_catalog->_typeMap.count(_typePort))
            son = father->edAddOutputDataStreamPort(_name, _catalog->_typeMap[_typePort]);
          else
            {
              DEBTRACE(_typePort << " not found in catalog");
              GuiContext::getCurrent()->_lastErrorMessage = _typePort + " not found in catalog";
            }
        }
      _ODSPort = son;
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(node));
      SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
      _sop = snode->addSubjectODSPort(son, _name);
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandAddODSPortFromCatalog::localExecute() : " << ex.what());
      setErrorMsg(ex);
      if (son) delete son;
      _ODSPort = 0;
    }
  return (_ODSPort != 0);
}

bool CommandAddODSPortFromCatalog::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 1558 of file commandsProc.cxx.

References YACS::HMI::GuiContext::_mapOfSubjectDataPort, _name, _node, _ODSPort, _sop, DEBTRACE, YACS::HMI::Subject::erase(), YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::ElementaryNode::getOutputDataStreamPort(), YACS::HMI::Subject::getParent(), YACS::HMI::GuiContext::getProc(), YACS::HMI::REMOVE, YACS::HMI::Subject::select(), setErrorMsg(), YACS::HMI::Subject::update(), YACS::Exception::what(), and YASSERT.

{
  DEBTRACE("CommandAddODSPortFromCatalog::localReverse");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node *node = proc->getChildByName(_node);
      ElementaryNode* enode = dynamic_cast<ElementaryNode*>(node);
      YASSERT(enode);
      _ODSPort = enode->getOutputDataStreamPort(_name);
      YASSERT(_ODSPort);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectDataPort.count(_ODSPort));
      _sop = dynamic_cast<SubjectOutputDataStreamPort*>(GuiContext::getCurrent()->_mapOfSubjectDataPort[_ODSPort]);
      YASSERT(_sop);

      Subject *father=_sop->getParent();
      Subject::erase(_sop);
      _sop = 0;
      _ODSPort = 0;
      if (father)
        {
          DEBTRACE("REMOVE");
          father->select(true);
          father->update(REMOVE,0,0);
        }
      return true;
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandAddODSPortFromCatalog::localReverse(): " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

Member Data Documentation

YACS::ENGINE::Catalog* YACS::HMI::CommandAddODSPortFromCatalog::_catalog

protected

Definition at line 337 of file commandsProc.hxx.

Referenced by localExecute().

std::string YACS::HMI::CommandAddODSPortFromCatalog::_name

protected

Definition at line 340 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

std::string YACS::HMI::CommandAddODSPortFromCatalog::_node

protected

Definition at line 339 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

YACS::ENGINE::OutputDataStreamPort* YACS::HMI::CommandAddODSPortFromCatalog::_ODSPort

protected

Definition at line 341 of file commandsProc.hxx.

Referenced by CommandAddODSPortFromCatalog(), getODSPort(), localExecute(), and localReverse().

SubjectOutputDataStreamPort* YACS::HMI::CommandAddODSPortFromCatalog::_sop

protected

Definition at line 342 of file commandsProc.hxx.

Referenced by CommandAddODSPortFromCatalog(), getSubjectODSPort(), localExecute(), and localReverse().

std::string YACS::HMI::CommandAddODSPortFromCatalog::_typePort

protected

Definition at line 338 of file commandsProc.hxx.

Referenced by dump(), and localExecute().

---

The documentation for this class was generated from the following files:

• src/hmi/commandsProc.hxx
• src/hmi/commandsProc.cxx
