YACS::ENGINE::InterceptorInputPort Class Reference

#include <ForEachLoop.hxx>

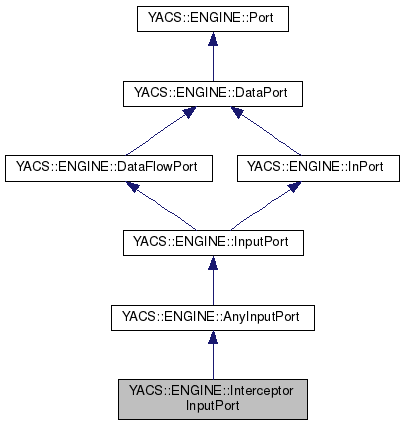

Inheritance diagram for YACS::ENGINE::InterceptorInputPort:

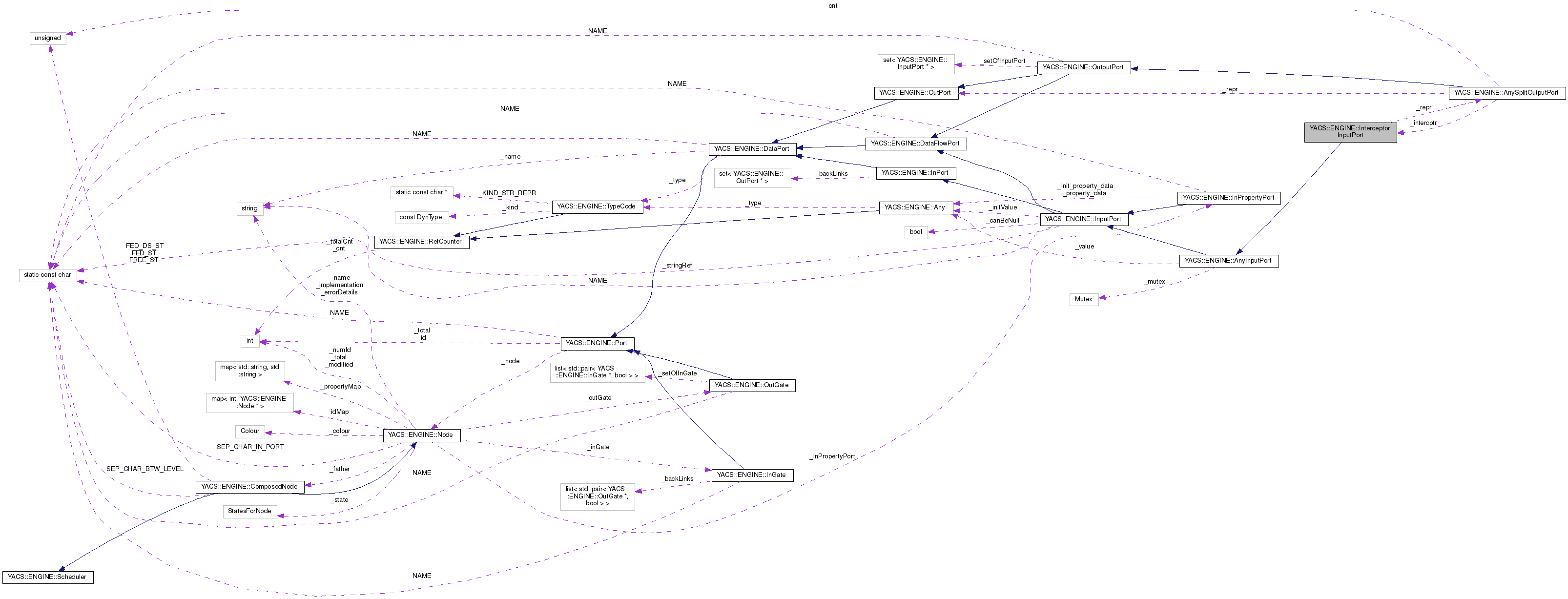

Collaboration diagram for YACS::ENGINE::InterceptorInputPort:

Private Member Functions
	InterceptorInputPort (const std::string &name, Node *node, TypeCode *type)
	InterceptorInputPort (const InterceptorInputPort &other, Node *newHelder)
void	getAllRepresentants (std::set< InPort * > &repr) const
InputPort *	clone (Node *newHelder) const
void	setRepr (AnySplitOutputPort *repr)

Private Attributes
AnySplitOutputPort *	_repr

Friends
class	ForEachLoop
class	SplitterNode

Additional Inherited Members
Public Member Functions inherited from YACS::ENGINE::AnyInputPort
	AnyInputPort (const std::string &name, Node *node, TypeCode *type, bool canBeNull=false)
	AnyInputPort (const AnyInputPort &other, Node *newHelder)
virtual	~AnyInputPort ()
void	exSaveInit ()
	Save the current data value for further reinitialization of the port. More...
void	exRestoreInit ()
	Restore the saved data value to current data value. More...
Any *	getValue () const
int	getIntValue () const
void	put (Any *data)
void *	get () const
virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...
virtual bool	isEmpty ()
void	put (const void *data) throw (ConversionException)
std::string	dump ()
virtual std::string	typeName ()
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)
Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"
Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)
	InputPort (const std::string &name, Node *node, TypeCode *type, bool canBeNull=false)
Protected Attributes inherited from YACS::ENGINE::AnyInputPort
Any *	_value
Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0
static const char	NAME [] ="Port"

Detailed Description

Definition at line 40 of file ForEachLoop.hxx.

Constructor & Destructor Documentation

InterceptorInputPort::InterceptorInputPort ( const std::string &  name, Node *  node, TypeCode *  type  )

private

Definition at line 54 of file ForEachLoop.cxx.

Referenced by clone().

                                                                                           :AnyInputPort(name,node,type),
                                                                                                DataPort(name,node,type),Port(node),
                                                                                                _repr(0)
{
}

InterceptorInputPort::InterceptorInputPort ( const InterceptorInputPort &  other, Node *  newHelder  )

private

Definition at line 60 of file ForEachLoop.cxx.

                                                                                             :AnyInputPort(other,newHelder),DataPort(other,newHelder),
                                                                                                Port(other,newHelder),
                                                                                                _repr(0)
{
}

Member Function Documentation

InputPort * InterceptorInputPort::clone ( Node *  newHelder ) const

privatevirtual

Reimplemented from YACS::ENGINE::AnyInputPort.

Definition at line 73 of file ForEachLoop.cxx.

References InterceptorInputPort().

{
  return new InterceptorInputPort(*this,newHelder);
}

void InterceptorInputPort::getAllRepresentants ( std::set< InPort * > &  repr ) const

privatevirtual

Reimplemented from YACS::ENGINE::InPort.

Definition at line 66 of file ForEachLoop.cxx.

References _repr, and YACS::ENGINE::OutputPort::edSetInPort().

{
  set<InPort *> ports=_repr->edSetInPort();
  for(set<InPort *>::iterator iter=ports.begin();iter!=ports.end();iter++)
    (*iter)->getAllRepresentants(repr);
}

void InterceptorInputPort::setRepr ( AnySplitOutputPort *  repr )

private

Definition at line 78 of file ForEachLoop.cxx.

References _repr.

Referenced by YACS::ENGINE::ForEachLoop::buildDelegateOf(), and YACS::ENGINE::ForEachLoop::ForEachLoop().

{
  _repr=repr;
}

Friends And Related Function Documentation

friend class ForEachLoop

friend

Definition at line 42 of file ForEachLoop.hxx.

friend class SplitterNode

friend

Definition at line 43 of file ForEachLoop.hxx.

Member Data Documentation

AnySplitOutputPort* YACS::ENGINE::InterceptorInputPort::_repr

private

Definition at line 45 of file ForEachLoop.hxx.

Referenced by getAllRepresentants(), and setRepr().

---

The documentation for this class was generated from the following files:

• src/engine/ForEachLoop.hxx
• src/engine/ForEachLoop.cxx
