Class for conversion from CORBA Output port to Python Input port. More...

#include <CORBAPythonConv.hxx>

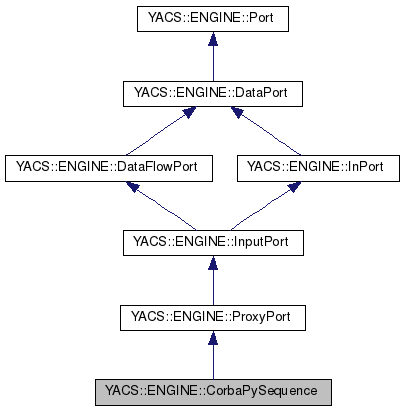

Inheritance diagram for YACS::ENGINE::CorbaPySequence:

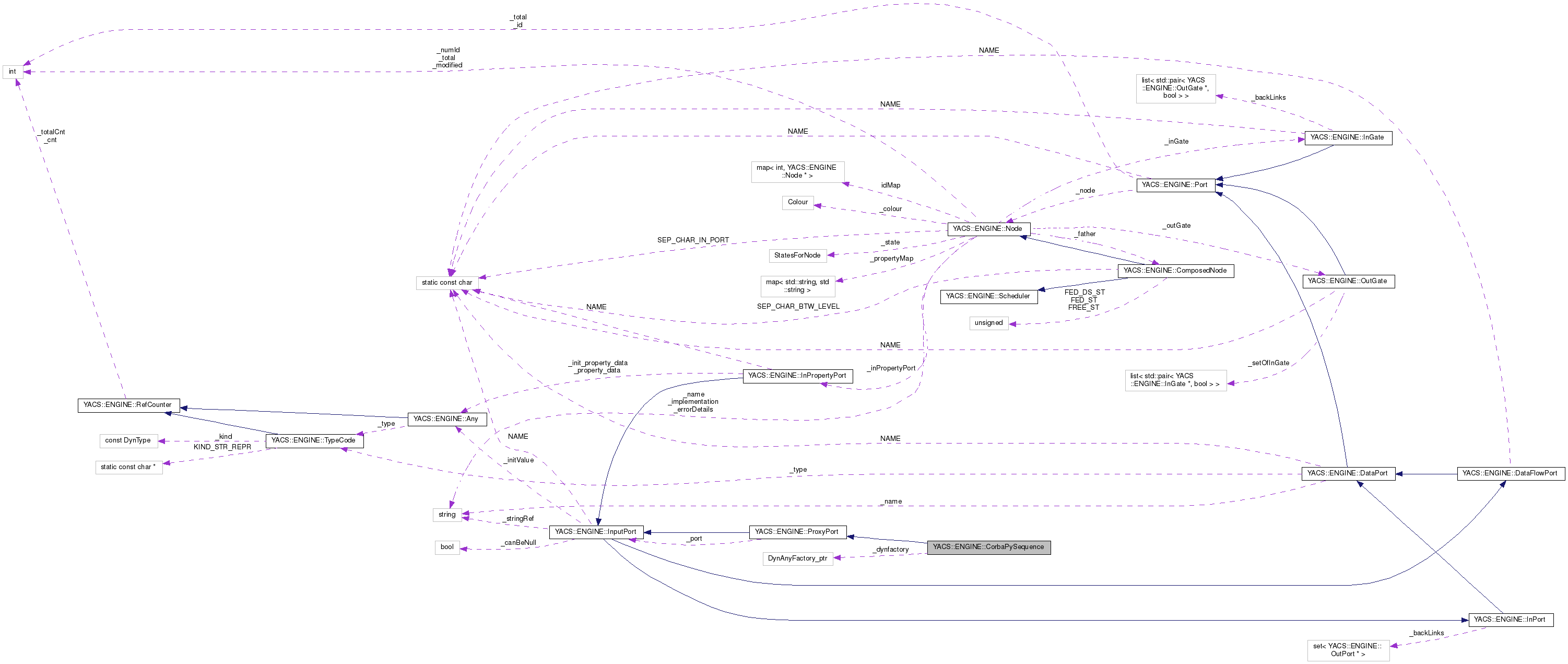

Collaboration diagram for YACS::ENGINE::CorbaPySequence:

Public Member Functions
	CorbaPySequence (InputPyPort *p)
	Class to convert a CORBA::Any sequence to a PyObject Sequence. More...

virtual void	put (const void *data) throw (ConversionException)

void	put (CORBA::Any *data) throw (ConversionException)
	Convert a CORBA::Any sequence to PyObject Sequence. More...

Public Member Functions inherited from YACS::ENGINE::ProxyPort
	ProxyPort (InputPort *p)

	~ProxyPort ()

void	edRemoveAllLinksLinkedWithMe () throw (Exception)

InputPort *	clone (Node *newHelder) const

void	edNotifyReferencedBy (OutPort *fromPort)

void	edNotifyDereferencedBy (OutPort *fromPort)

std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

void *	get () const

int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

bool	isIntermediate () const

void	exRestoreInit ()

void	exSaveInit ()

void	getAllRepresentants (std::set< InPort * > &repr) const

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::InputPort
virtual	~InputPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...

bool	edIsInitialized () const
	soon deprecated More...

template<class T >
void	edInit (T value)

void	edInit (Any *value)

void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...

virtual void	checkBasicConsistency () const throw (Exception)
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void	exInit (bool start)

virtual bool	isEmpty ()

virtual std::string	dump ()

virtual std::string	getHumanRepr ()

virtual void	setStringRef (std::string strRef)

bool	canBeNull () const

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual	~InPort ()

Protected Attributes
DynamicAny::DynAnyFactory_ptr	_dynfactory

Protected Attributes inherited from YACS::ENGINE::ProxyPort
InputPort *	_port

Protected Attributes inherited from YACS::ENGINE::InputPort
Any *	_initValue

std::string	_stringRef

bool	_canBeNull

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< OutPort * >	_backLinks

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"

Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)

	InputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Class for conversion from CORBA Output port to Python Input port.

Definition at line 105 of file CORBAPythonConv.hxx.

Constructor & Destructor Documentation

CorbaPySequence::CorbaPySequence ( InputPyPort * p )

Class to convert a CORBA::Any sequence to a PyObject Sequence.

Parameters

p	: input Python port to adapt to Corba output port

Definition at line 150 of file CORBAPythonConv.cxx.

References _dynfactory, YACS::ENGINE::RuntimeSALOME::getDynFactory(), and YACS::ENGINE::getSALOMERuntime().

   : ProxyPort(p), DataPort(p->getName(), p->getNode(), p->edGetType()), Port(p->getNode())
 {
   _dynfactory = getSALOMERuntime()->getDynFactory();
 }

Member Function Documentation

void CorbaPySequence::put ( const void * data ) throw (ConversionException)

virtual

Reimplemented from YACS::ENGINE::ProxyPort.

Definition at line 156 of file CORBAPythonConv.cxx.

 {
   put((CORBA::Any *)data);
 }

void CorbaPySequence::put ( CORBA::Any * data ) throw (ConversionException)

Convert a CORBA::Any sequence to PyObject Sequence.

Parameters

data	: CORBA::Any object

Definition at line 165 of file CORBAPythonConv.cxx.

References YACS::ENGINE::convertCorbaPyObject(), and DEBTRACE.

 {
   InterpreterUnlocker loc;
   PyObject* ob=convertCorbaPyObject(edGetType(),data);
   DEBTRACE("ob refcnt: " << ob->ob_refcnt );
   _port->put(ob);
   Py_DECREF(ob);
 }

Member Data Documentation

DynamicAny::DynAnyFactory_ptr YACS::ENGINE::CorbaPySequence::_dynfactory

protected

Definition at line 112 of file CORBAPythonConv.hxx.

Referenced by CorbaPySequence().

The documentation for this class was generated from the following files:

src/runtime/CORBAPythonConv.hxx
src/runtime/CORBAPythonConv.cxx
