Action with associated list of items. More...

#include <QtxListAction.h>

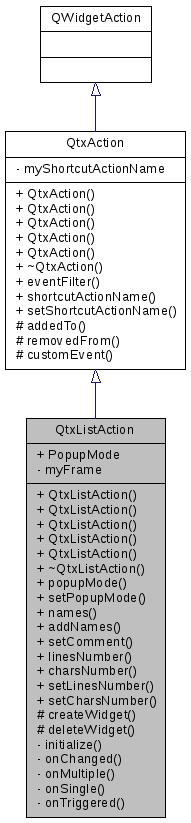

Inheritance diagram for QtxListAction:

Classes
class	ListFrame
	Expanding frame with action list and comment. More...

class	ListWidget
	List of actions. More...

class	ScrollEvent
	Event for the scrolling in the list of actions. More...

Public Types
enum	{ Item, SubMenu }
	Popup mode. More...

Signals
void	triggered (int)

Public Member Functions
	QtxListAction (QObject *=0)
	Constructor. More...

	QtxListAction (const QString &, int, QObject *)
	Constructor. More...

	QtxListAction (const QString &, const QString &, int, QObject *)
	Constructor. More...

	QtxListAction (const QIcon &, const QString &, int, QObject *)
	Constructor. More...

	QtxListAction (const QString &, const QIcon &, const QString &, int, QObject *)
	Constructor. More...

virtual	~QtxListAction ()
	Destructor. More...

int	popupMode () const
	Get popup mode. More...

void	setPopupMode (const int)
	Set popup mode. More...

QStringList	names () const
	Get current list of names. More...

void	addNames (const QStringList &, bool=true)
	Add names to the list. More...

void	setComment (const QString &, const QString &=QString())
	Set the format Qt string for comments displayed under the list of actions for one action and for several actions. More...

int	linesNumber () const
	Get maximum numer of lines shown without activation of vertical scroll bar. More...

int	charsNumber () const
	Get maximum numer of characters in the line. More...

void	setLinesNumber (const int)
	Set maximum numer of lines shown without activation of vertical scroll bar. More...

void	setCharsNumber (const int)
	Set maximum numer of characters in the line. More...

Public Member Functions inherited from QtxAction
	QtxAction (QObject *=0, bool=false, const QString &=QString())
	Constructor. More...

	QtxAction (const QString &, const QString &, int, QObject *, bool=false, const QString &=QString())
	Constructor. More...

	QtxAction (const QString &, const QString &, const QKeySequence &, QObject *, bool=false, const QString &=QString())
	Constructor. More...

	QtxAction (const QString &, const QIcon &, const QString &, int, QObject *, bool=false, const QString &=QString())
	Constructor. More...

	QtxAction (const QString &, const QIcon &, const QString &, const QKeySequence &, QObject *, bool=false, const QString &=QString())
	Constructor. More...

virtual	~QtxAction ()
	Destructor. More...

virtual bool	eventFilter (QObject , QEvent )
	Customize action events. More...

QString	shortcutActionName () const
	Return shortcut action name for the action. More...

void	setShortcutActionName (const QString &)
	Set shortcut action name to the action. More...

Public Attributes
enum QtxListAction:: { ... }	PopupMode

Protected Member Functions
virtual QWidget *	createWidget (QWidget *)
	Create action widget. More...

virtual void	deleteWidget (QWidget *)
	Destroy action widget. More...

Protected Member Functions inherited from QtxAction
virtual void	addedTo (QWidget *)
	Called when the action is added to the widget. More...

virtual void	removedFrom (QWidget *)
	Called when the action is removed from the widget. More...

virtual void	customEvent (QEvent *)
	Process notification events. More...

Private Slots
void	onChanged ()
	Called the action contents is changed. More...

void	onMultiple (const int)
	Called when multiple items are selected. More...

void	onSingle (bool=false)
	Called when a user click action button. More...

void	onTriggered (bool=false)
	Called when user activates an items in the popup sub menu. More...

Private Member Functions
void	initialize ()
	Initialize the action. More...

Private Attributes
ListFrame *	myFrame
	list of actions shown as submenu More...

Friends
class	QtxListAction::ListFrame

Detailed Description

This class can be helpuful, for example, for creation of Undo/Redo toolbar items which show list of available commands in the popup list box.

Member Enumeration Documentation

anonymous enum

Enumerator
Item	action is added to popup menu as menu item
SubMenu	action is added to popup menu as sub menu with list of items

Constructor & Destructor Documentation

QtxListAction::QtxListAction ( QObject * parent = 0 )

Parameters

parent parent object

References initialize().

QtxListAction::QtxListAction	(	const QString &	menuText,
		int	accel,
		QObject *	parent
	)

Parameters

menuText	menu text
accel	key accelerator
parent	parent object

References initialize().

QtxListAction::QtxListAction	(	const QString &	text,
		const QString &	menuText,
		int	accel,
		QObject *	parent
	)

Parameters

text	action description text (tooltip)
menuText	menu text
accel	key accelerator
parent	parent object

References initialize().

QtxListAction::QtxListAction	(	const QIcon &	icon,
		const QString &	menuText,
		int	accel,
		QObject *	parent
	)

Parameters

icon	action icon
menuText	menu text
accel	key accelerator
parent	parent object

References initialize().

QtxListAction::QtxListAction	(	const QString &	text,
		const QIcon &	icon,
		const QString &	menuText,
		int	accel,
		QObject *	parent
	)

Parameters

text	action description text (tooltip)
icon	action icon
menuText	menu text
accel	key accelerator
parent	parent object

References initialize().

QtxListAction::~QtxListAction ( )

virtual

References myFrame.

Member Function Documentation

void QtxListAction::addNames	(	const QStringList &	names,
		bool	clear = `true`
	)

Truncates each name to fit the frame width. Method setCharsNumber() can be used to change the frame width (in characters).

Parameters

names	list of names to be added
clear	if `true`, remove the old contents from the list

See Also: setCharsNumber()

References QtxListAction::ListFrame::addNames(), QtxListAction::ListFrame::clear(), myFrame, and onChanged().

int QtxListAction::charsNumber ( ) const

If the name length is greater than this value, it will be truncated.

Returns: number of characters

See Also: setCharsNumber(), linesNumber(), setLinesNumber()

References QtxListAction::ListFrame::charsNumber(), and myFrame.

QWidget * QtxListAction::createWidget ( QWidget * parent )

protectedvirtual

This function is called whenever the action is added to a container widget that supports custom widgets like menu or toolbar.

Parameters

parent container widget the action is added to

Returns: tool button for toolbar and 0 otherwise

References myFrame, names(), and onSingle().

void QtxListAction::deleteWidget ( QWidget * widget )

protectedvirtual

This function is called whenever the action is removed from a container widget that supports custom widgets like menu or toolbar.

Parameters

widget container widget the action is removed from

void QtxListAction::initialize ( )

private

References Item, myFrame, onChanged(), onSingle(), QtxListAction::ListFrame::setCharsNumber(), QtxListAction::ListFrame::setLinesNumber(), setPopupMode(), and triggered().

int QtxListAction::linesNumber ( ) const

Returns: number of lines

See Also: setLinesNumber(), charsNumber(), setCharsNumber()

References QtxListAction::ListFrame::linesNumber(), and myFrame.

QStringList QtxListAction::names ( ) const

Returns: list of names

References myFrame, and QtxListAction::ListFrame::names().

void QtxListAction::onChanged ( )

privateslot

References myFrame, QtxListAction::ListFrame::names(), onTriggered(), and triggered().

void QtxListAction::onMultiple ( const int numActions )

privateslot

References myFrame, and triggered().

void QtxListAction::onSingle ( bool = false )

privateslot

Parameters

on	(not used)

References onMultiple().

void QtxListAction::onTriggered ( bool = false )

privateslot

Parameters

on	(not used)

References triggered().

int QtxListAction::popupMode ( ) const

Returns: current popup mode (QtxListAction::PopupMode)

See Also: setPopupMode()

References Item, and SubMenu.

void QtxListAction::setCharsNumber ( const int nchars )

If the name length is greater than this value, it will be truncated.

Parameters

maxChars number of characters (5 by default)

See Also: charsNumber(), linesNumber(), setLinesNumber()

References myFrame, and QtxListAction::ListFrame::setCharsNumber().

void QtxListAction::setComment	(	const QString &	c,
		const QString &	sc = `QString()`
	)

Example: "Undo %1 actions" format string will work as "Undo 3 actions" when 3 actions are selected. The default format string is "%1".

Parameters

c	single action comment format
c	multiple actions comment format

References myFrame, QtxListAction::ListFrame::setMultipleComment(), and QtxListAction::ListFrame::setSingleComment().

void QtxListAction::setLinesNumber ( const int nlines )

Parameters

nlines number of lines (5 by default)

See Also: linesNumber(), charsNumber(), setCharsNumber()

References myFrame, and QtxListAction::ListFrame::setLinesNumber().

void QtxListAction::setPopupMode ( const int mode )

Parameters

mode	new popup mode (QtxListAction::PopupMode)

See Also: popupMode()

References Item, onChanged(), and popupMode().

void QtxListAction::triggered ( int )

signal

Friends And Related Function Documentation

friend class QtxListAction::ListFrame

friend

Member Data Documentation

ListFrame* QtxListAction::myFrame

private

enum { ... } QtxListAction::PopupMode

The documentation for this class was generated from the following files:

src/Qtx/QtxListAction.h
src/Qtx/QtxListAction.cxx
