This class used same as vtkGeometryFilter. See documentation on VTK for more information.

#include <VTKViewer_GeometryFilter.h>

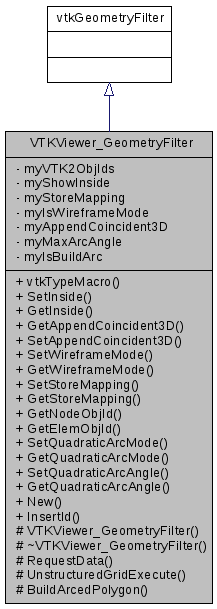

Inheritance diagram for VTKViewer_GeometryFilter:

Public Types
typedef std::vector< vtkIdType >	TVectorId

typedef std::vector< TVectorId >	TMapOfVectorId

Public Member Functions
	vtkTypeMacro (VTKViewer_GeometryFilter, vtkGeometryFilter)
	VTK type revision macros. More...

void	SetInside (int theShowInside)
	Sets myShowInside flag. myShowInside is changed, call this->Modified(). More...

int	GetInside ()
	Return value of myShowInside. More...

int	GetAppendCoincident3D () const
	Return value of myAppendCoincident3D. More...

void	SetAppendCoincident3D (int theFlag)
	Sets myAppendCoincident3D flag. If this flag is true, filter append to the result data set coincident 3D elements. More...

void	SetWireframeMode (int theIsWireframeMode)
	Sets myIsWireframeMode flag. myIsWireframeMode is changed, call this->Modified(). More...

int	GetWireframeMode ()
	Return value of myIsWireframeMode. More...

void	SetStoreMapping (int theStoreMapping)
	Sets myStoreMapping flag and call this->Modified() More...

int	GetStoreMapping ()
	Return value of myStoreMapping. More...

virtual vtkIdType	GetNodeObjId (int theVtkID)
	Return input value theVtkID. More...

virtual vtkIdType	GetElemObjId (int theVtkID)
	Return object ID by VTK ID cell. More...

virtual void	SetQuadraticArcMode (bool theFlag)

virtual bool	GetQuadraticArcMode () const

virtual void	SetQuadraticArcAngle (double theMaxAngle)

virtual double	GetQuadraticArcAngle () const

Static Public Member Functions
static VTKViewer_GeometryFilter *	New ()

static void	InsertId (const vtkIdType theCellId, const vtkIdType theCellType, TVectorId &theVTK2ObjIds, TMapOfVectorId &theDimension2VTK2ObjIds)

Protected Member Functions
	VTKViewer_GeometryFilter ()
	Constructor which sets myShowInside = 0 and myStoreMapping = 0. More...

	~VTKViewer_GeometryFilter ()
	Destructor. More...

virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )

int	UnstructuredGridExecute (vtkDataSet , vtkPolyData , vtkInformation *)
	Filter culculation method for data object type is VTK_UNSTRUCTURED_GRID. More...

void	BuildArcedPolygon (vtkIdType cellId, vtkUnstructuredGrid input, vtkPolyData output, TMapOfVectorId &theDimension2VTK2ObjIds, bool triangulate=false)

Private Attributes
TVectorId	myVTK2ObjIds

int	myShowInside

int	myStoreMapping

int	myIsWireframeMode

int	myAppendCoincident3D

double	myMaxArcAngle

bool	myIsBuildArc

Member Typedef Documentation

typedef std::vector<TVectorId> VTKViewer_GeometryFilter::TMapOfVectorId

typedef std::vector<vtkIdType> VTKViewer_GeometryFilter::TVectorId

Constructor & Destructor Documentation

VTKViewer_GeometryFilter::VTKViewer_GeometryFilter ( )

protected

VTKViewer_GeometryFilter::~VTKViewer_GeometryFilter ( )

protected

Member Function Documentation

void VTKViewer_GeometryFilter::BuildArcedPolygon	(	vtkIdType	cellId,
		vtkUnstructuredGrid *	input,
		vtkPolyData *	output,
		TMapOfVectorId &	theDimension2VTK2ObjIds,
		bool	triangulate = `false`
	)

protected

References VTKViewer_ArcBuilder::Arc_Done, CreatePnt(), VTKViewer_ArcBuilder::GetPoints(), VTKViewer_ArcBuilder::GetScalarValues(), VTKViewer_ArcBuilder::GetStatus(), InsertId(), MergevtkPoints(), myMaxArcAngle, myStoreMapping, and myVTK2ObjIds.

int VTKViewer_GeometryFilter::GetAppendCoincident3D ( ) const

Return values

myAppendCoincident3D

References myAppendCoincident3D.

vtkIdType VTKViewer_GeometryFilter::GetElemObjId ( int theVtkID )

virtual

Return values

myVTK2ObjIds[theVtkID]

References myVTK2ObjIds.

int VTKViewer_GeometryFilter::GetInside ( )

Return values

myShowInside

vtkIdType VTKViewer_GeometryFilter::GetNodeObjId ( int theVtkID )

inlinevirtual

Return values

theVtkID

double VTKViewer_GeometryFilter::GetQuadraticArcAngle ( ) const

virtual

References myMaxArcAngle.

bool VTKViewer_GeometryFilter::GetQuadraticArcMode ( ) const

virtual

References myIsBuildArc.

int VTKViewer_GeometryFilter::GetStoreMapping ( )

Return values

myStoreMapping

int VTKViewer_GeometryFilter::GetWireframeMode ( )

Return values

myIsWireframeMode

void VTKViewer_GeometryFilter::InsertId	(	const vtkIdType	theCellId,
		const vtkIdType	theCellType,
		TVectorId &	theVTK2ObjIds,
		TMapOfVectorId &	theDimension2VTK2ObjIds
	)

static

static VTKViewer_GeometryFilter * VTKViewer_GeometryFilter::New ( )

static

int VTKViewer_GeometryFilter::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)

protectedvirtual

void VTKViewer_GeometryFilter::SetAppendCoincident3D ( int theFlag )

References myAppendCoincident3D.

void VTKViewer_GeometryFilter::SetInside ( int theShowInside )

Parameters

theShowInside - used for changing value of myShowInside variable.

void VTKViewer_GeometryFilter::SetQuadraticArcAngle ( double theMaxAngle )

virtual

References myMaxArcAngle.

void VTKViewer_GeometryFilter::SetQuadraticArcMode ( bool theFlag )

virtual

References myIsBuildArc.

void VTKViewer_GeometryFilter::SetStoreMapping ( int theStoreMapping )

Parameters

theStoreMapping - used for changing value of myStoreMapping variable.

void VTKViewer_GeometryFilter::SetWireframeMode ( int theIsWireframeMode )

Parameters

theIsWireframeMode - used for changing value of myIsWireframeMode variable.

void VTKViewer_GeometryFilter::UnstructuredGridExecute	(	vtkDataSet *	dataSetInput,
		vtkPolyData *	output,
		vtkInformation *	outInfo
	)

protected

References Build1DArc(), VTKViewer_Triangulator::Execute(), Extent(), and toShowEdge().

VTKViewer_GeometryFilter::vtkTypeMacro	(	VTKViewer_GeometryFilter	,
		vtkGeometryFilter
	)

Member Data Documentation

int VTKViewer_GeometryFilter::myAppendCoincident3D

private

bool VTKViewer_GeometryFilter::myIsBuildArc

private

int VTKViewer_GeometryFilter::myIsWireframeMode

private

double VTKViewer_GeometryFilter::myMaxArcAngle

private

int VTKViewer_GeometryFilter::myShowInside

private

int VTKViewer_GeometryFilter::myStoreMapping

private

TVectorId VTKViewer_GeometryFilter::myVTK2ObjIds

private

The documentation for this class was generated from the following files:

src/VTKViewer/VTKViewer_GeometryFilter.h
src/VTKViewer/VTKViewer_GeometryFilter.cxx
