NETGEN_Algorithm Class Reference

Base of all NETGEN algorithms. More...

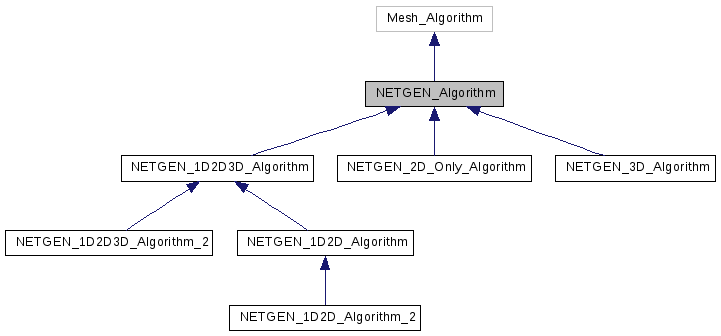

Inheritance diagram for NETGEN_Algorithm:

Public Member Functions
def	__init__
	Private constructor. More...
def	SetMaxSize
	Sets MaxSize parameter. More...
def	SetMinSize
	Sets MinSize parameter. More...
def	SetOptimize
	Sets Optimize flag. More...
def	SetFineness
	Sets Fineness parameter. More...
def	SetGrowthRate
	Sets GrowthRate parameter. More...
def	Parameters
	Creates meshing hypothesis according to the chosen algorithm type and initializes it with default parameters. More...
def	SetMeshSizeFile
	Defines a file specifying size of elements at points and lines. More...

Data Fields
	params
	algoType

Detailed Description

Base of all NETGEN algorithms.

This class provides common methods for all algorithms implemented by NETGEN plugin.

Note

This class must not be instantiated directly.

Constructor & Destructor Documentation

def __init__	(		self,
			mesh,
			geom = 0
	)

Private constructor.

Parameters

mesh	parent mesh object algorithm is assigned to
geom	geometry (shape/sub-shape) algorithm is assigned to; if it is 0 (default), the algorithm is assigned to the main shape

References NETGEN_Algorithm.algoType, and Mesh_Algorithm.Create().

Member Function Documentation

def SetMaxSize	(		self,
			theSize
	)

Sets MaxSize parameter.

Parameters

theSize

new value of the MaxSize parameter

References NETGEN_Algorithm.Parameters().

def SetMinSize	(		self,
			theSize
	)

Sets MinSize parameter.

Parameters

theSize

new value of the MinSize parameter

References NETGEN_Algorithm.Parameters().

def SetOptimize	(		self,
			theVal
	)

Sets Optimize flag.

Parameters

theVal

new value of the Optimize parameter

References NETGEN_Algorithm.Parameters().

def SetFineness	(		self,
			theFineness
	)

Sets Fineness parameter.

Parameters

theFineness

new value of the Fineness parameter; it can be: VeryCoarse, Coarse, Moderate, Fine, VeryFine or Custom

References NETGEN_Algorithm.Parameters().

def SetGrowthRate	(		self,
			theRate
	)

Sets GrowthRate parameter.

Parameters

theRate

new value of the GrowthRate parameter

References NETGEN_Algorithm.Parameters().

def Parameters	(		self,
			which = SOLE
	)

Creates meshing hypothesis according to the chosen algorithm type and initializes it with default parameters.

Parameters

which

hypothesis type; can be either SOLE (default) or SIMPLE

Returns

hypothesis object

def SetMeshSizeFile	(		self,
			file
	)

Defines a file specifying size of elements at points and lines.

Parameters

file	name of the file

References NETGEN_Algorithm.Parameters().

Field Documentation

params

algoType
