Triangle NETGEN 1D-2D algorithm. More...

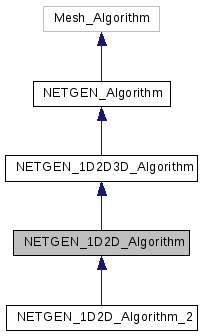

Inheritance diagram for NETGEN_1D2D_Algorithm:

Public Member Functions
def	__init__
	Private constructor. More...

def	SetSecondOrder
	Sets `SecondOrder` flag. More...

def	SetNbSegPerEdge
	Sets `NbSegPerEdge` parameter. More...

def	SetNbSegPerRadius
	Sets `NbSegPerRadius` parameter. More...

def	SetQuadAllowed
	Sets `QuadAllowed` flag. More...

def	SetUseSurfaceCurvature
	Sets `UseSurfaceCurvature` flag. More...

def	SetFuseEdges
	Sets `FuseEdges` flag. More...

def	SetNumberOfSegments
	Sets number of segments overriding the value set by SetLocalLength() More...

def	SetLocalLength
	Sets number of segments overriding the value set by SetNumberOfSegments() More...

def	MaxElementArea
	Defines `MaxElementArea` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	LengthFromEdges
	Defines `LengthFromEdges` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	LengthFromFaces
	Defines `LengthFromFaces` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	MaxElementVolume
	Defines `MaxElementVolume` parameter of `NETGEN_SimpleParameters_3D` hypothesis. More...

def	SetMaxSize
	Sets `MaxSize` parameter. More...

def	SetMinSize
	Sets `MinSize` parameter. More...

def	SetOptimize
	Sets `Optimize` flag. More...

def	SetFineness
	Sets `Fineness` parameter. More...

def	SetGrowthRate
	Sets `GrowthRate` parameter. More...

def	Parameters
	Creates meshing hypothesis according to the chosen algorithm type and initializes it with default parameters. More...

def	SetMeshSizeFile
	Defines a file specifying size of elements at points and lines. More...

Data Fields
	params

Static Public Attributes
string	meshMethod = "Triangle"
	name of the dynamic method in smeshBuilder.Mesh class More...

	algoType = NETGEN_1D2D
	type of algorithm used with helper function in smeshBuilder.Mesh class More...

string	docHelper = "Creates triangle 2D algorithm for faces"
	doc string of the method More...

Detailed Description

Triangle NETGEN 1D-2D algorithm.

It can be created by calling smeshBuilder.Mesh.Triangle( smeshBuilder.NETGEN_1D2D, geom=0 )

This algorithm generates 1D (edges) and 2D (faces) elements for given geometrical shape.

Constructor & Destructor Documentation

def __init__	(	self,
		mesh,
		geom = `0`
	)

Private constructor.

Parameters

mesh	parent mesh object algorithm is assigned to
geom	geometry (shape/sub-shape) algorithm is assigned to; if it is `0` (default), the algorithm is assigned to the main shape

Member Function Documentation

def SetSecondOrder	(	self,
		theVal
	)

inherited

Sets SecondOrder flag.

Parameters

theVal new value of the SecondOrder parameter

References NETGEN_Algorithm.Parameters().

def SetNbSegPerEdge	(	self,
		theVal
	)

inherited

Sets NbSegPerEdge parameter.

Parameters

theVal new value of the NbSegPerEdge parameter

References NETGEN_Algorithm.Parameters().

def SetNbSegPerRadius	(	self,
		theVal
	)

inherited

Sets NbSegPerRadius parameter.

Parameters

theVal new value of the NbSegPerRadius parameter

References NETGEN_Algorithm.Parameters().

def SetQuadAllowed	(	self,
		toAllow = `True`
	)

inherited

Sets QuadAllowed flag.

Parameters

toAllow new value of the QuadAllowed parameter (True by default)

References NETGEN_Algorithm.Parameters().

def SetUseSurfaceCurvature	(	self,
		toUse = `True`
	)

inherited

Sets UseSurfaceCurvature flag.

Parameters

toUse new value of the UseSurfaceCurvature parameter (True by default)

References NETGEN_Algorithm.Parameters().

def SetFuseEdges	(	self,
		toFuse = `False`
	)

inherited

Sets FuseEdges flag.

Parameters

toFuse new value of the FuseEdges parameter (False by default)

References NETGEN_Algorithm.Parameters().

def SetNumberOfSegments	(	self,
		theVal
	)

inherited

Sets number of segments overriding the value set by SetLocalLength()

Parameters

theVal new value of number of segments parameter

References NETGEN_Algorithm.Parameters().

def SetLocalLength	(	self,
		theVal
	)

inherited

Sets number of segments overriding the value set by SetNumberOfSegments()

Parameters

theVal new value of local length parameter

References NETGEN_Algorithm.Parameters().

def MaxElementArea	(	self,
		area
	)

inherited

Defines MaxElementArea parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by LengthFromEdges()

Parameters

area	new value of `MaxElementArea` parameter

References NETGEN_Algorithm.Parameters().

def LengthFromEdges ( self )

inherited

Defines LengthFromEdges parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by MaxElementArea()

References NETGEN_Algorithm.Parameters().

def LengthFromFaces ( self )

inherited

Defines LengthFromFaces parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by MaxElementVolume()

References NETGEN_Algorithm.Parameters().

def MaxElementVolume	(	self,
		vol
	)

inherited

Defines MaxElementVolume parameter of NETGEN_SimpleParameters_3D hypothesis.

Overrides value set by LengthFromFaces()

Parameters

vol	new value of `MaxElementVolume` parameter

References NETGEN_Algorithm.Parameters().

def SetMaxSize	(	self,
		theSize
	)

inherited

Sets MaxSize parameter.

Parameters

theSize new value of the MaxSize parameter

References NETGEN_Algorithm.Parameters().

def SetMinSize	(	self,
		theSize
	)

inherited

Sets MinSize parameter.

Parameters

theSize new value of the MinSize parameter

References NETGEN_Algorithm.Parameters().

def SetOptimize	(	self,
		theVal
	)

inherited

Sets Optimize flag.

Parameters

theVal new value of the Optimize parameter

References NETGEN_Algorithm.Parameters().

def SetFineness	(	self,
		theFineness
	)

inherited

Sets Fineness parameter.

Parameters

theFineness new value of the Fineness parameter; it can be: VeryCoarse, Coarse, Moderate, Fine, VeryFine or Custom

References NETGEN_Algorithm.Parameters().

def SetGrowthRate	(	self,
		theRate
	)

inherited

Sets GrowthRate parameter.

Parameters

theRate new value of the GrowthRate parameter

References NETGEN_Algorithm.Parameters().

def Parameters	(	self,
		which = `SOLE`
	)

inherited

Creates meshing hypothesis according to the chosen algorithm type and initializes it with default parameters.

Parameters

which hypothesis type; can be either SOLE (default) or SIMPLE

Returns: hypothesis object

def SetMeshSizeFile	(	self,
		file
	)

inherited

Defines a file specifying size of elements at points and lines.

Parameters

file	name of the file

References NETGEN_Algorithm.Parameters().

Field Documentation

string meshMethod = "Triangle"

static

name of the dynamic method in smeshBuilder.Mesh class

algoType = NETGEN_1D2D

static

type of algorithm used with helper function in smeshBuilder.Mesh class

string docHelper = "Creates triangle 2D algorithm for faces"

static

doc string of the method

params

inherited
